Model Number : 5NFL
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time : 3-5 work days
Operating Principle : 4-electrode electrochemical
Measurement Range : 0 ppm to 300 ppm NO
Maximum Overload : 1000 ppm NO
Sensitivity* : 0.50 mA/ppm ±0.08 mA/ppm
Filter : To remove effect of SO2
5NFL Nitric Oxide Sensor Product Code: AF508-W0P Low Range NO CiTicel
Document Purpose
The purpose of this document is to present the performance specification of the 5NFL nitric oxide gas sensor.
This document should be used in conjunction with Operating Principles (OP20) and the Product Safety Datasheet (PSDS 18).
The data provided in this document are valid at 20°C, 50% RH and 1013 mBar for 3 months from the date of sensor manufacture.
Output signal can drift below the lower limit over time. For guidance on the safe use of the sensor, please refer to the Operating Principles (OP20).
Operating Temperature Range (continuous) | -20°C to 40°C [-4°F to 104°F] |
Recommended Storage Temperature | 0°C to 20°C |
Operating Pressure Range | Atmospheric ±10% |
Absolute Pressure Coefficient | <0.01% signal/mbar |
Differential Pressure Coefficient | <0.03% signal/mbar |
Operating Humidity Range | 15%rH to 90%rH non-condensing |
Expected Operating Life | Three years in air |
Long-Term Output Drift | <2% signal loss/month |
![]() |

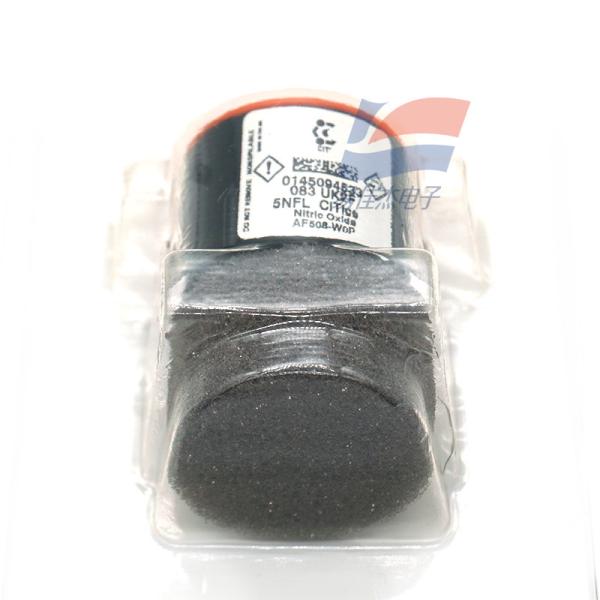

5NFL Nitric Oxide Sensor Product Code: AF508-W0P Low Range NO CiTicel Images |
