5SO2-B4F Sulfur dioxide sensor 4-Electrode (High Humidity)

Model Number : 5SO2-B4F

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 work days

Sensitivity : 275 to 475

Response time : < 40

Zero current : -80 to +80

Noise* : 5

Range : 100

Linearity : 0 to -2

Contact Now

5SO2-B4F Sulfur dioxide sensor 4-Electrode (High Humidity)

LIFETIME :

Zero drift ppb equivalent change/year in lab air < ±20
Sensitivity drift % change/year in lab air, monthly test < ±15
Operating life months until 50% original signal (24 month warranted) > 36

ENVIRONMENTAL :

Sensitivity @ -20°C (% output @ -20°C/output @ 20°C) @ 2ppm SO2 70 to 90
Sensitivity @ 50°C (% output @ 50°C/output @ 20°C) @ 2ppm SO2 90 to 110
Zero @ -20°C nA change from 20°C 0 to -10
Zero @ 50°C nA change from 20°C 10 to 30

Temperature range	-30 to 50 °C
Pressure range	80 to 120 kPa
Humidity range	30 to 95 % rh continuous (see note below)
Storage period	6 months @ 3 to 20°C (stored in sealed pot)
Load Resistor	33 to 100 (ISB circuit is recommended)
Weight	< 13 g

5SO2-B4F Sulfur dioxide sensor 4-Electrode (High Humidity)

Product Tags:

High Humidity Sulfur dioxide sensor

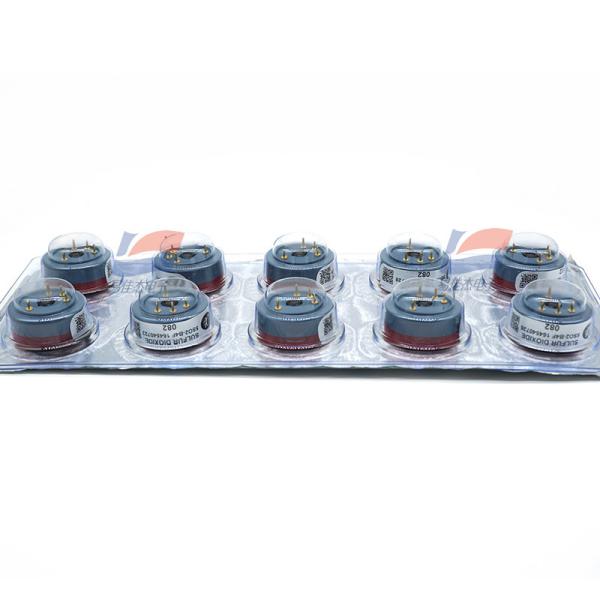

5SO2-B4F Sulfur dioxide sensor 4-Electrode (High Humidity) Images
