7E4-H2S-10 FOUR ELECTRODE H2S SENSOR PN: 052-1900-200

Model Number : 7E4-H2S-10

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5 work days

Nominal Range : 0 ~ 10 ppm

Maximum Overload : 30 ppm

Sensitivity (20°C) : 1.5 ± 0.5 μA/ppm

Response Time (T90) : ≤ 90 s

Zero Signal (20°C) : < ±300 nA

Baseline Shift (-30°C ~ 50°C) : < 100 ppb

Contact Now

7E4-H2S-10 FOUR ELECTRODE H2S SENSOR PN: 052-1900-200

Description:

This 4-electrode sensor is designed for air quality monitoring to mea- sure the low-concentration H2S gas with ultra-high resolutions. The de- sign optimizes the sensor sensitivity, accuracy and long-term stability and enables the sensor to detect H2S variations at parts per billion (ppb) levels.

Temperature Range	-30°C ~ 50°C
Pressure Range	1 ± 0.1 atm
Humidity Range	15% ~ 90%RH non-condensing
Long Time Output Drift	< 10% signal/year
Recommended Storage Temp	10°C ~ 30°C
Expected Operating Life	2 years in clean air
Storage Life	6 months in original packaging
Warranty	24 months

7E4-H2S-10 FOUR ELECTRODE H2S SENSOR PN: 052-1900-200

Product Tags:

FOUR ELECTRODE H2S SENSOR

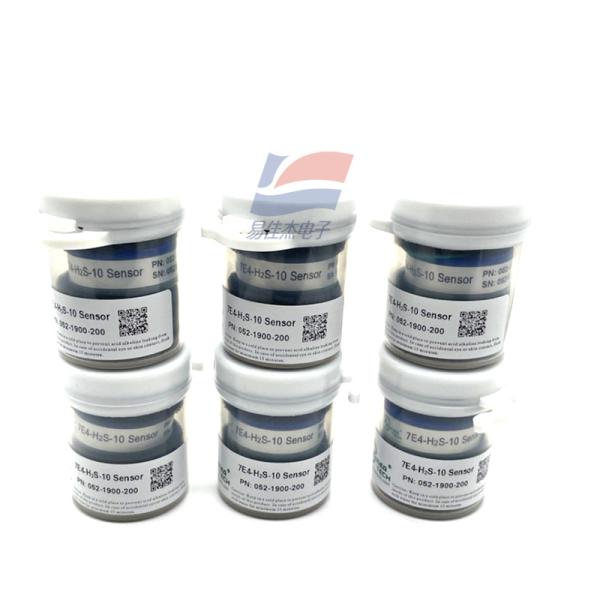

7E4-H2S-10 FOUR ELECTRODE H2S SENSOR PN: 052-1900-200 Images
