Brand Name : Dart
Model Number : 2-FE5
Place of Origin : Britain
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 2200
Delivery Time : 3 days
Packaging Details : Disk mounting
Lower limit of measurement : 0.03ppm
Temperature range : -10 to 40℃
Humidity range : 15%-90%, non-condensation
Response time t90 : 30 seconds
Temperature drift : 0.35%/℃
Product Description:

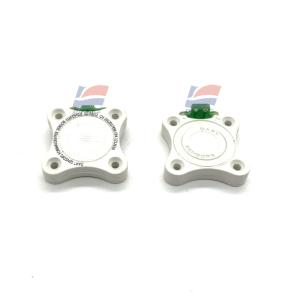

CH2O/2-FE5 Economical Electrochemical Formaldehyde Sensor
Features:
electrochemical formaldehyde gas sensor produced by dart Sensor in the United Kingdom is a truly continuous monitoring sensor, without the need for any gas sampling or pumping.
The sensor is a two-electrode electrochemical sensor, implemented by diffusion principle, so no external sampling hardware is required. When formaldehyde gas is present, there will be a small direct current generation; The sensor itself does not require a power supply, but the current generated requires external data acquisition to turn it into a readable signal.
Technical indicators:
Measuring range: 0-5ppm;
Life span; 3 years;
Output signal: 150-350nA/ppm;
Resolution: 0.01ppm
Lower limit of measurement: 0.03ppm
Temperature range: -10 to 40℃
Humidity range: 15%-90%, non-condensation;
Response time t90:30 seconds
Temperature drift: 0.35%/℃
Baseline drift (20℃-40℃) : 0ppm
Size: 40x35x9.5mm
Application: Handheld detector, indoor detection device
Specifications:
Measuring range | 0-5ppm; |
Life span | 3 years |
Output signal | 150-350nA/ppm; |
Resolution | 0.01ppm |
![]() |
