ME4-H2S Hydrogen Sulfide Gas Sensor Oxidation-reduction Reaction With Hydrogen Sulfide And Oxygen Take Place Respectively On The Working Electrode And

  • 1
  • 2
  • 3

Model Number : ME4-H2S

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5work days

Detection Range : 0～100ppm

Max range : 500ppm

Sensitivity : (0.8±0.15)µA/ppm

Resolution : 0.1ppm

Response Time(T90) : ＜30S

Bias Voltage : 0mV

Contact Now

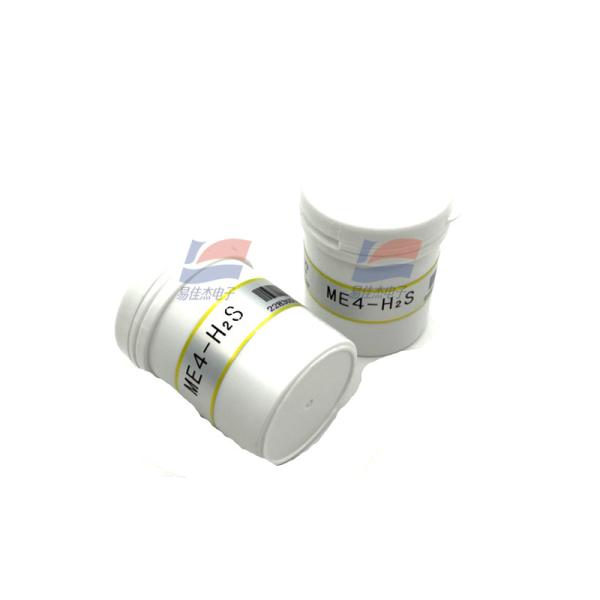

ME4-H2S Hydrogen Sulfide Gas Sensor Oxidation-reduction Reaction With Hydrogen Sulfide And Oxygen Take Place Respectively On The Working Electrode And On The Counter Electrode

ME4-H2S hydrogen sulfide gas sensor is constant potential electrolysis type. Oxidation-reduction reaction with hydrogen sulfide and oxygen take place respectively on the working electrode and on the counter electrode. The process releases electric charge and generates current. The current is in direct proportion to the concentration of hydrogen sulfide. So the concentration of the target gas could be got by measuring the value of current.

Features :

Low power consumption, high precision, high sensitivity, wide linear range, good anti-interference ability, excellent repeatability and stability.

Main applications:

It is used for hydrogen sulfide detection in industrial occasions, mine and environmental protection field.

Stability(/month) ＜2﹪
Output Linearity Linear
Zero drift(-20℃～40℃) ≤0.2ppm
Temperature range -20℃～50℃
Humidity range 15﹪～90﹪RH

ME4-H2S Hydrogen Sulfide Gas Sensor Oxidation-reduction Reaction With Hydrogen Sulfide And Oxygen Take Place Respectively On The Working Electrode And
