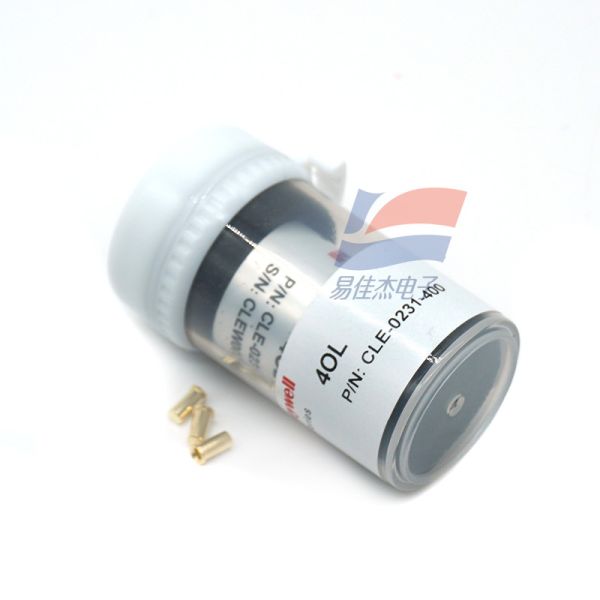

YJJ 4OL CLE-0231-400 O2 Electrochemical Gas Sensor Oxygen Detector

Model Number : 4OL CLE-0231-400

Place of Origin : USA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3 days

Packaging Details : boxed

Packaging : boxed

Minimum packing quantity : one

Measurement object : gas

Precision : 1%

Contact Now

Product Description:

4OL CLE-0231-400 O2 Electrochemical Gas Sensor Oxygen Detector

Features:

Product type CLE-0231-400

Measuring range 0 to 30% O2

Load 90% O2

Output signal 350 ± 50 μA in air

Baseline <20 μa (nitrogen)

Resolution 0.1% O2

Response time (T90) £30 seconds

linearity

Long-term stability <2% signal value /3 months

Working condition

Operating temperature -20 ℃ to 50 ℃

Operating Humidity 5 to 90%RH (non-condensing)

Working pressure 80 to 120 kPa

Bias voltage -600 mV

Storage time 6 months (in the box)

Storage temperature 0 ℃ to 20 ℃

Service life 2 years in the air

18 months after delivery

Physical property

It weighs about 5 grams

Azimuth requirement None

Specifications:

Working temperature	- 20-100
Ambient temperature	0 to 40
Accuracy	2.5 mm
Indication error	0.1%

YJJ 4OL CLE-0231-400 O2 Electrochemical Gas Sensor Oxygen Detector
