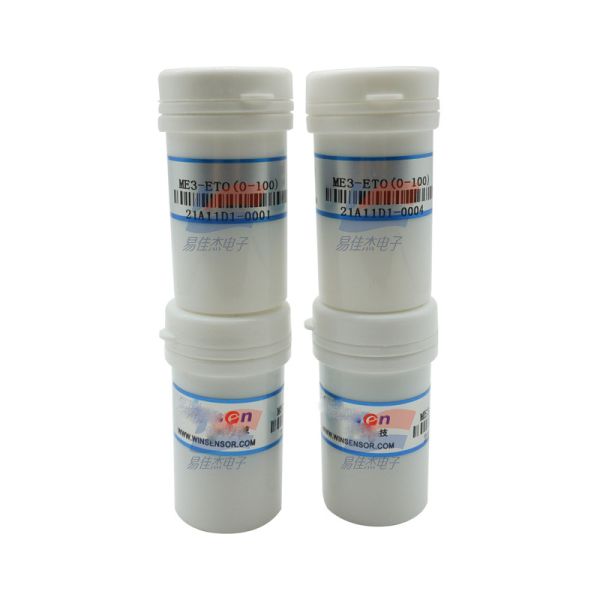

ME3-ETO Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

  • 1
  • 2
  • 3

Model Number : ME3-ETO

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 3-5work days

Measurement Range : 0～20ppm

Max detecting concentration : 100ppm

Sensitivity : （1.8±0.3）µA/ppm

Resolution ratio : 0.1ppm

Response time（T90） : ＜120S

Load resistance : 10Ω（recommended）

Contact Now

ME3-ETO Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle

ME3-ETO electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

Features :

* Low consumption

* High precision

* High sensitivity

* Wide linear range

* Good anti-interference ability

* Excellent repeatability and stability

Application :

Widely used in industrial and environmental fields

Output Linearity linear
Zero drift(-20℃～40℃) 4ppm
Storage temperature -20℃～50℃
Storage Humidity 15﹪～90﹪RH no condensation
15﹪～90﹪RH no condensation Standard atmosphere ±10%

ME3-ETO Electrochemical Sensor Detect Gas Concentration By Measuring Current Based On The Electrochemical Principle
