Model Number : S1226-18BK S1226-18BQ

Place of Origin : Japan

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs

Delivery Time : 3-5work days

Packaging Details : Paper box

Light-receiving side : 1.1 × 1.1 mm

encapsulation : metal

Package Category : TO-18

refrigeration : Non-cooled

Reverse voltage (max) : 5 V

Spectral response range : 320 to 1000 nm

Contact Now

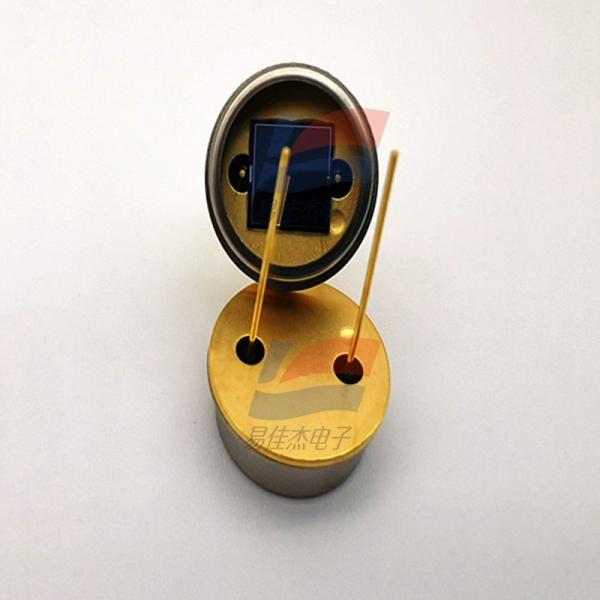

Silicon Pin photodiodes S1226-18BK

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity

Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability

Maximum Sensitivity Wavelength (Typical)	720 nm
Light sensitivity (typical)	0.36 A/W
Dark current (max)	2pA
Rise Time (Typical)	0.15 μs
Junction Capacitance (typical)	35 pF
Noise equivalent power (typical)	1.6×10-15 W/Hz1/2

Silicon Photodiodes S1226-18BK S1226-18BQ Suppression Of NIR Sensitivity

Silicon Pin photodiodes S1226-18BQ

It is suitable for precise photometry in the ultraviolet to visible wavelength band; Suppresses near-infrared sensitivity

Features
- High UV sensitivity: QE = 75 % (λ = 200 nm)
- Suppression of NIR sensitivity
- Low dark current
- High reliability

Silicon Photodiodes S1226-18BK S1226-18BQ Suppression Of NIR Sensitivity
