AQ+7NO Nitric Oxide NO Sensor 7Series 4Pin High Precision 4th Electrode

Brand Name : DDS

Model Number : AQ+7NO

Place of Origin : UK

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000pcs/Month

Delivery Time : 3-5workingdays

Packaging Details : Standard Package

Target Gas : Nitric Oxide (NO)

Package : 7 Series

Range : 0 - 25 ppm

Output : 400 ± 100 nanoamperes/ppm

T90 Response Time : < 60 seconds

Interface/Pinout : 1-pin/4-pin

Contact Now

AQ+7NO Nitric Oxide NO Sensor 7Series 4Pin High Precision 4th Electrode

Detailed description:

The AQ+7NO is a 7-series format nitric oxide sensor equipped with a 4-pin interface. The AQ+7NO requires a +300mV bias voltage. The AQ+7NO has a measurement range of 0 - 25 ppm, an output current of 400 ± 100 nA/ppm, a response time of less than 60 seconds, and a warranty of 24 months. The main features of the AQ+7NO include: high accuracy, strong environmental stability, and excellent price/performance ratio.

Introduction The AQ+7NO is a 4 Electrode NO sensor designed for use in environmental air quality applications

Key Features: 4th electrode for improved baseline v temperature performance

Output signal	500±100 nAppm
Typical Baseline Range (pure air)	+-100 nA (Net S-A Baseline)
T90 Response Time	<40 seconds
Measurement Range	0 -25 ppm
Maximum Overload	50 ppm
Repeatability	<+2% NO equivalent
Recommended Load Resistor	20 ohms
Resolution	< 10 ppb typical
Temperature Range Continuous	-300℃ to +500℃
Pressure Range	800 to 1200 mbar
Operating Humidity Range	15% to 90% RH

AQ+7NO Nitric Oxide NO Sensor 7Series 4Pin High Precision 4th Electrode

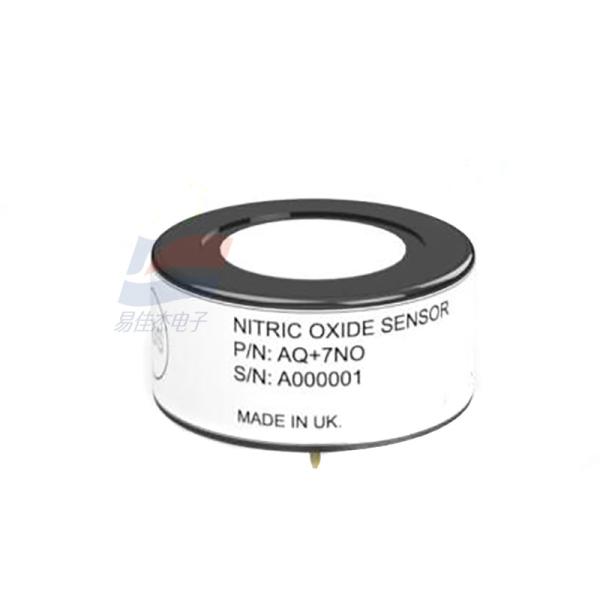

AQ+7NO Nitric Oxide NO Sensor 7Series 4Pin High Precision 4th Electrode Images
