YJJ ZE25-O3 Electrochemical Ozone Sensor Module Is Used In Air Quality Monitoring Equipment

Product Description:

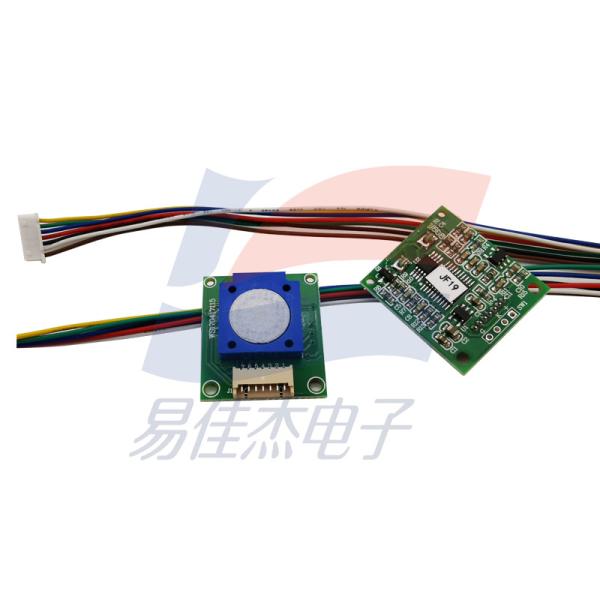

ZE25-O3 Electrochemical Ozone Sensor Module Is Used In Air Quality Monitoring Equipment

Features:

ZE25-O3 electrochemical ozone module is a universal and miniaturized module. Using electrochemical principle to detect ozone gas in the air, it has good selectivity and stability. Built-in temperature sensor, temperature compensation; At the same time with digital output and analog voltage output mode, easy to use. ZE25-O3 is a universal gas module designed and manufactured by combining mature electrochemical detection technology with sophisticated circuit design.

Product model ZE25-O3

Detection gas O3

Interference gas NO2, CL2 and other gases

Output data DAC(0.4 ~ 2V voltage signal corresponding concentration: 0 ~ 10PPM)

UART Output (3V level)

Operating voltage 3.7V~5.5V (no voltage reverse protection)

Preheating time ≤3 minutes

Response time ≤90 seconds

Recovery time ≤90 seconds

Measuring range 0~10ppm

Resolution 0.01ppm

Operating temperature -10℃ ~ 55℃

Working humidity 15%RH-90%RH (non-condensing)

Storage temperature -20℃ ~ 55℃

Service life 2 years (in the air)

Specifications:

Electrochemical Ozone Sensor Module

YJJ ZE25-O3 Electrochemical Ozone Sensor Module Is Used In Air Quality Monitoring Equipment Images
