YJJ XGZP6858A Series Absolute Pressure Sensor Waterproof Can Measure Liquid Level Automotive Electronic Large Range

Brand Name : YJJ

Model Number : XGZP6858A

Place of Origin : CHINA

MOQ : 1

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2200

Delivery Time : 3 days

Packaging Details : piping

Measuring range : 0kPa ~ 100kPa... 700kPa

Absolute pressure digital output type : suitable for non-corrosive gases or liquids

Power supply : 2.5V to 5.5V

Current consumption : 5uA(one measurement)

Contact Now

Product Description:

XGZP6858A Series Absolute Pressure Sensor Waterproof Can Measure Liquid Level Automotive Electronic Large Range

Features:

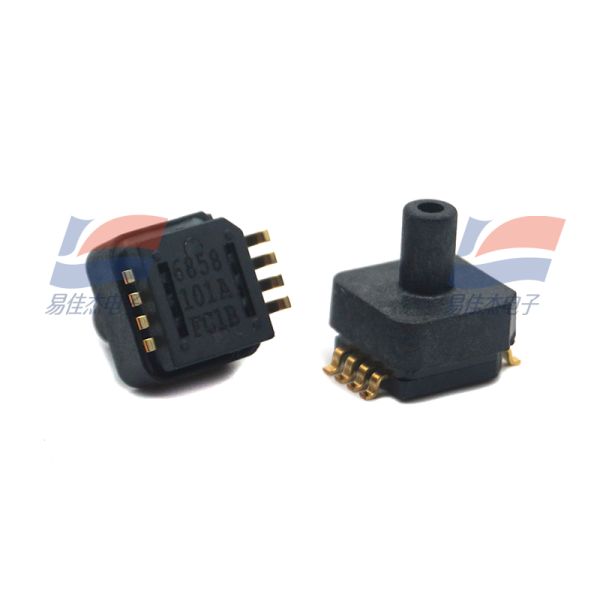

XGZP6858D pressure sensor module adopts the form of SOP package, and the pressure sensor chip and signal processing circuit chip are included in the shell. The deviation, sensitivity, temperature drift and nonlinearity of the sensor are digitally compensated, and a calibrated and temperature-compensated standard voltage signal is generated by referring to the power supply voltage.

XGZP6858D pressure module chip surface covered with fluorine silica gel, waterproof, moisture-proof, oil and gas resistance; The nozzle is made of stainless steel, resistant to impact; Small size, easy to install, can be calibrated according to user requirements output signal, widely used in household appliances, water pressure measurement, pressure instruments and other fields

The XGZP6858D can be customized to various pressure ranges and accuracy.

Specifications:

Temperature accuracy ±0.5℃@25℃
Power supply (5±0.25) V DC
Reference temperature 25℃
Response time 2.5ms@OSR_P=1024X Ms

YJJ XGZP6858A Series Absolute Pressure Sensor Waterproof Can Measure Liquid Level Automotive Electronic Large Range
