Brand Name : YJJ
Model Number : WSP2110
Place of Origin : CHINA
MOQ : 1
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time : 3 days
Packaging Details : Disk mounting
Heating voltage VH : 5.0V±0.1V AC or DC
Load resistance RL : adjustable
Heating resistance RH : 95Ω±10Ω (room temperature)
Heating power consumption PH : ≤300mW
Product Description:
WSP2110 Organic Steam Sensor For Air Purifiers
Features:
WSP2110 semiconductor organic vapor sensitive element adopts the advanced plane production process, forming a heater and metal oxide semiconductor gas sensitive material on the micro Al2O3 ceramic substrate, and using the electrode lead, encapsulated in the metal tube base and tube cap. When the detected gas is present, the higher the concentration of VOC gas in the air, the higher the conductivity of the gas sensor. This change in conductivity can be converted into an output signal corresponding to the gas concentration using a simple circuit.
Main application
Home environment harmful gas detection automatic exhaust device, air purifier, etc
Specifications:
Product type | Planar semiconductor gas sensor |
Standard package | Metal package |
Detection gas | Toluene, formaldehyde, benzene, alcohol, propanone, etc |
Detection concentration | 1 ~ 50ppm |
![]() |

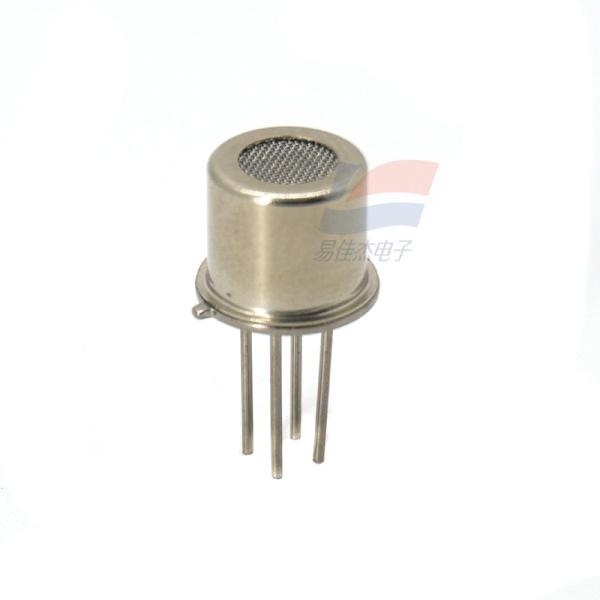

YJJ WSP2110 Organic Steam Sensor For Air Purifiers Images |
