YJJ ME4-H2S Electrochemical Hydrogen Sulfide Sensor Is Used For Hydrogen Sulfide Detection In Industry And Environmental Protection

Product Description:

ME4-H2S Electrochemical Hydrogen Sulfide Sensor Is Used For Hydrogen Sulfide Detection In Industry And Environmental Protection

Features:

ME4-H2S type sensor is a constant potential electrolysis type H2S sensor. H2S and O2 undergo corresponding REDOX reactions at the working electrode and the opposite electrode and release charge to form current. The current is proportional to the concentration of H2S, and the concentration of H2S can be determined by testing the current.

Item parameter

Detection gas Hydrogen sulfide (H2S)

Measuring range 0-100ppm

z Maximum measurement limit 500ppm

Sensitivity (0.8±0.15) uA/ppm

Resolution 0.1ppm

Response time (T90) < 30s

Bias voltage 0mV

Load resistance (recommended) 10Ω

Repeatability < 2% output value

Stability (/ month) < 2%

The output linearity is linear

Zero drift (-20℃-40℃) ≤0.2ppm

Temperature range -20℃~50℃

Humidity range 15­­­­%-90%RH

Pressure range standard atmospheric pressure ±10%

Detection life 2 years (in the air)

Specifications:

Industry Electrochemical Hydrogen Sulfide Sensor

Industry Hydrogen Sulfide Sensor

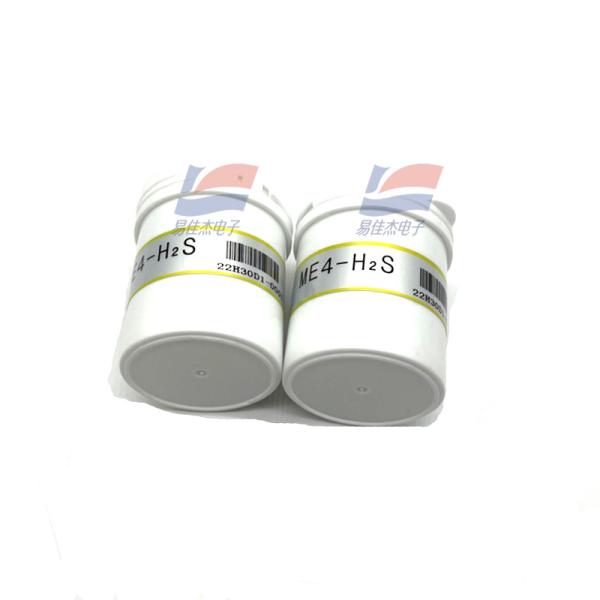

YJJ ME4-H2S Electrochemical Hydrogen Sulfide Sensor Is Used For Hydrogen Sulfide Detection In Industry And Environmental Protection Images
