YJJ ME3-CO Electrochemical CO Sensors Are Used To Detect Carbon Monoxide Concentrations In Industrial And Environmental Applications

Product Description:

ME3-CO Electrochemical CO Sensors Are Used To Detect Carbon Monoxide Concentrations In Industrial And Environmental Applications

Features:

ME3-CO carbon monoxide sensor is a constant potential electrolytic sensor, carbon monoxide and oxygen respectively on the working electrode and the opposite electrode corresponding REDOX reaction and release charge to form a current, the current generated is proportional to the concentration of carbon monoxide, through the test current size can determine the level of carbon monoxide concentration.

Item parameter

Detection gas Carbon monoxide (CO)

Measuring range 0-1000ppm

z Maximum measurement limit 2000ppm

Sensitivity (0.070±0.015) uA/ppm

Resolution 0.5ppm

Response time (T90) <20s

Bias voltage 0 mV

Long load resistance (recommended) 10Ω

Repeatability < 2% output value

Output linearity

Stability (/ month) < 5%

Zero drift (-20℃ ~ 40℃) 10ppm

Temperature range -20℃~50℃

Humidity range 15% to 90%RH

Pressure range standard atmospheric pressure ±10%

Service life 3 years (in the air)

Specifications:

Environmental Electrochemical CO Sensors

Industrial Electrochemical CO Sensors

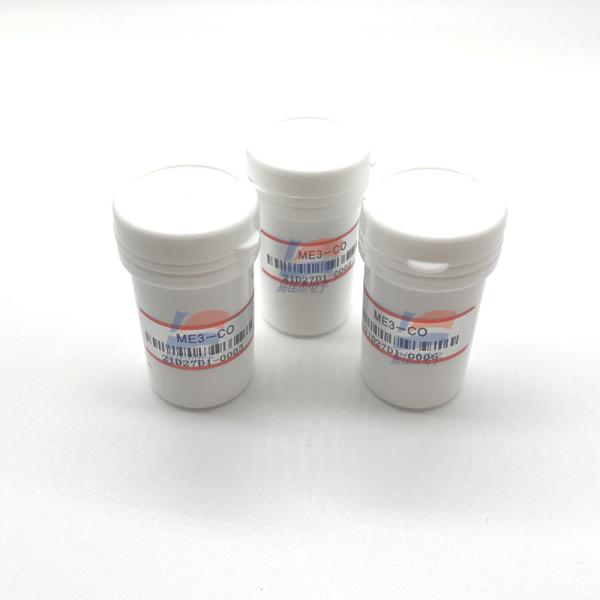

YJJ ME3-CO Electrochemical CO Sensors Are Used To Detect Carbon Monoxide Concentrations In Industrial And Environmental Applications Images
