26PCCFA6D Board Mount Pressure Sensors Miniature Low with 0.4% Accuracy

  • 1
  • 2
  • 3

Brand Name : YJJ

Model Number : 26PCCFA6D

Place of Origin : USA

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000/pcs/month

Delivery Time : 3-5workingdays

Packaging Details : Standard Package

Pressure Type : Vacuum, Gauge, Differential

Operating Pressure : 15 psi

Accuracy : 0.4 %

Output Type : Analog

Contact Now

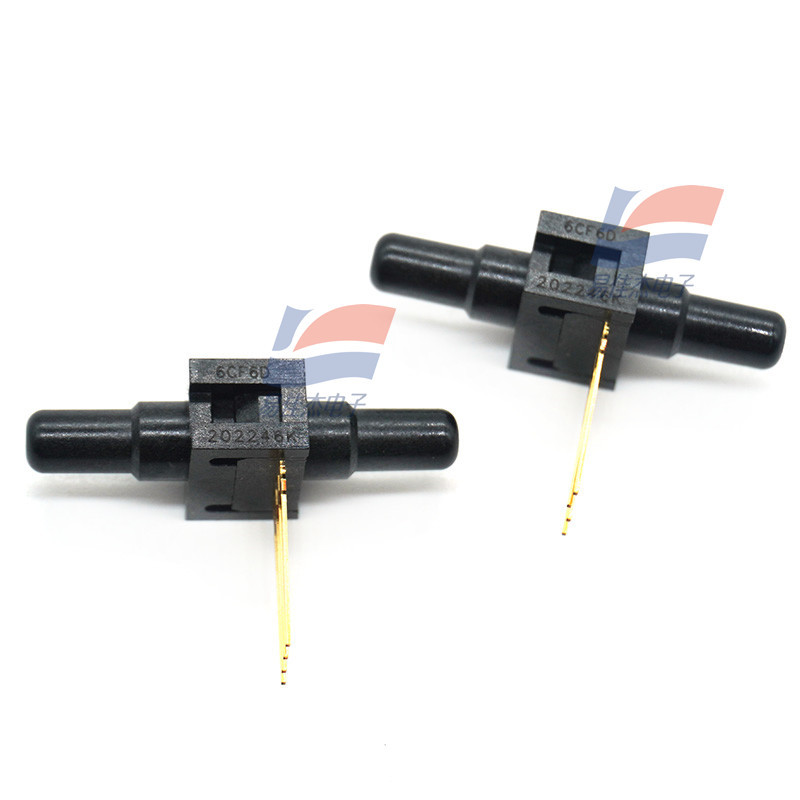

26PCCFA6D Board Mount Pressure Sensors Miniature Low

The 26PC Series Miniature Pressure Sensors are small, cost-effective devices intended for use with wet or dry media.
These sensors feature proven sensing technology that uses a specialized piezoresistive micromachined sensing element
to offer high performance, reliability, and accuracy. Each sensor contains four active piezoresistors that form a Wheatstone
bridge. When pressure is applied, the resistance changes and the sensor provides a milliVolt output signal that is proportional to the input pressure.

Mounting Style
Through Hole
Operating Supply Voltage 10 V
Port Type Dual Axial Barbless, Opposite Sides
Package / Case SIP-4
Minimum Operating Temperature - 40℃
Maximum Operating Temperature + 85℃
Supply Voltage - Max 16 V

26PCCFA6D Board Mount Pressure Sensors Miniature Low with 0.4% Accuracy
