YJJ M-03 M-04 German Medical Oxygen Sensor Oxygen Battery with 6 Years Working Life and 13-17mV Output

Product Description:

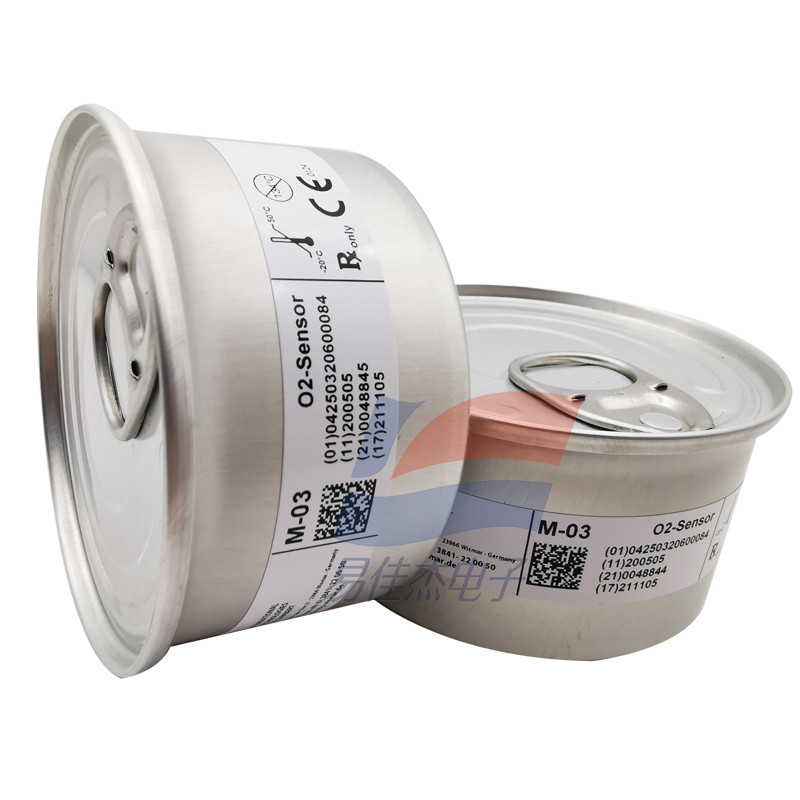

M-03 M-04 German Medical Oxygen Sensor Oxygen Battery

Features:

M-03 German Oxygen Sensor Oxygen battery *

Measurement range: 0- 100%

Working life: 6 years in the air

Output: 13 to 17 mV

Resolution: 0.1%

Temperature range: 0℃ to 40℃

Pressure range: 750 to 1250 hPa

Response time (T 90) : < 12 seconds

Humidity range: 0- 100% RH (resistant to high humidity)

Zero-point output (* N2, 20℃) : < 0.2 mV

Large zero drift (20℃to 40℃) : 1%

Long-term drift: <1% per month

Recommended load value: >10KΩ

Linearity output: 2%

Repeatability: 1%

Storage life: 6 months (in container)

Interface: 3.5mm mono jack, with temperature compensation;

Medical oxygen sensors (O2 sensors, oxygen batteries, oxygen probes, oxygen electrodes)

M-04 German Oxygen Sensor Oxygen battery *

Measurement range: 0- 100%

Working life: 6 years in the air

Output: 13 to 17 mV

Resolution: 0.1%

Temperature range: 0℃ to 40℃

Pressure range: 750 to 1250 hPa

Response time (T 90) : < 12 seconds

Humidity range: 0- 100% RH (resistant to high humidity)

Zero-point output (* N2, 20℃) : < 0.2 mV

Large zero drift (20℃to 40℃) : 1%

Long-term drift: <1% per month

Recommended load value: >10KΩ

Linearity output: 2%

Repeatability: 1%

Storage life: 6 months (in container)

Port: 3-pin socket with temperature compensation;

Specifications:

Large zero drift (20℃to 40℃)	1%
Long-term drift	<1% per month
Recommended load valu	>10KΩ
Storage life	6 months (in container)
